The EcoFlow Delta Pro - Overview

The EcoFlow Delta Pro is a portable power station designed to provide reliable and sustainable power for various applications including outdoor adventures, emergency backup power, and off-grid living.

Explore the following images to see the different functions and ports in this unit:

The Delta Pro is equipped with a collapsible handle and wheels for easy transportation. The back of the unit also has a Solar/Car Charging Input, AC Charge Speed Switch, Overload Protection Switch, an X-Stream AC CHarging Input Port, and two extra battery ports.

The Delta Pro has many different ports for charging any of your devices or appliances.

On the front, there are two USB-A Fast Charge Output ports along with two regular USB-A Output ports. Then there are two USB-C 100W Output ports, a total of four AC Output Sockets (20A), and one 30A AC port.

The EcoFlow also has built-in fans on both sides to help regulate the unit's internal temperature. It also has more ports. Behind the cover (as shown), there is an Anderson Port, car outlet, DC5521 Output port, remote control RJ45 port, an IoT reset button, pairing button, standby switch, and an infinity port.

Here are some key features of the EcoFlow Delta Pro:

1. High Capacity: The Delta Pro has a large-capacity lithium-ion battery that can store up to 3.6 kWh (3,840 Wh) of energy. This capacity allows it to power numerous devices and appliances simultaneously.
2. Powerful Output: It provides a maximum output power of 3600W, with a surge capacity of 7200W for short periods. This allows you to power high-demand devices such as power tools, electric stoves, and even certain home appliances. It can even run the solar A/C mini-split AirSpool with ease.
3. Multiple Charging Options: The Delta Pro can be charged through various methods. It supports AC charging, which allows you to plug it into a wall socket for recharging. It has settings for Rapid Charging (1800W max input) and standard charging. Additionally, it can be charged through solar panels, car adaptors, or general inputs, making it versatile and suitable for different scenarios.
4. Fast Recharging: The AC charging capability allows the Delta Pro to be fully charged in as little as 2 hours. However, the charging time may vary depending on the power input source and the capacity remaining in the battery. You can recharge it at standard wall outlets (1800W max), at the EV stations (3400W max), Smart Home Panel, and 240V outlets (3000W max).
5. Comprehensive Port Options: It features multiple output ports, including AC outlets, USB ports, USB-C PD, DC outputs, and RV connections. These ports enable you to power a wide range of devices, from smartphones and laptops to power tools and electric vehicles.
6. Intuitive Control and Monitoring: The Delta Pro comes with a user-friendly control panel and an LCD screen that provides real-time monitoring of power usage, battery level, and other important information.
7. Expandable Solar Charging: The power station supports expandable solar charging, allowing you to connect additional solar panels for faster and more efficient solar recharging. This feature is useful for off-grid applications or in areas with limited access to electricity. As long as the solar panels use MC4 connectors and their combined voltage and current are within 11-150 volts and under 15 amp, 1600W max.

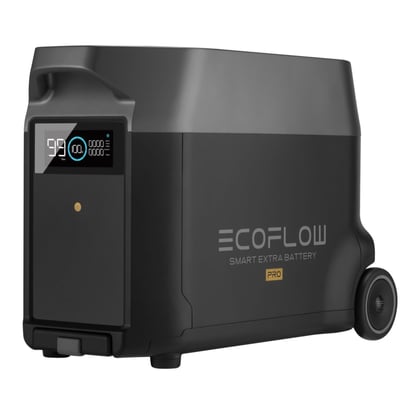

8. Modular Design: The Delta Pro is designed with a modular battery system, which means you can add or replace individual battery modules to extend its capacity or replace damaged modules easily. You can add up to two Smart Batteries for more capacity or add another Delta Pro via the EcoFlow Voltage Hub.
